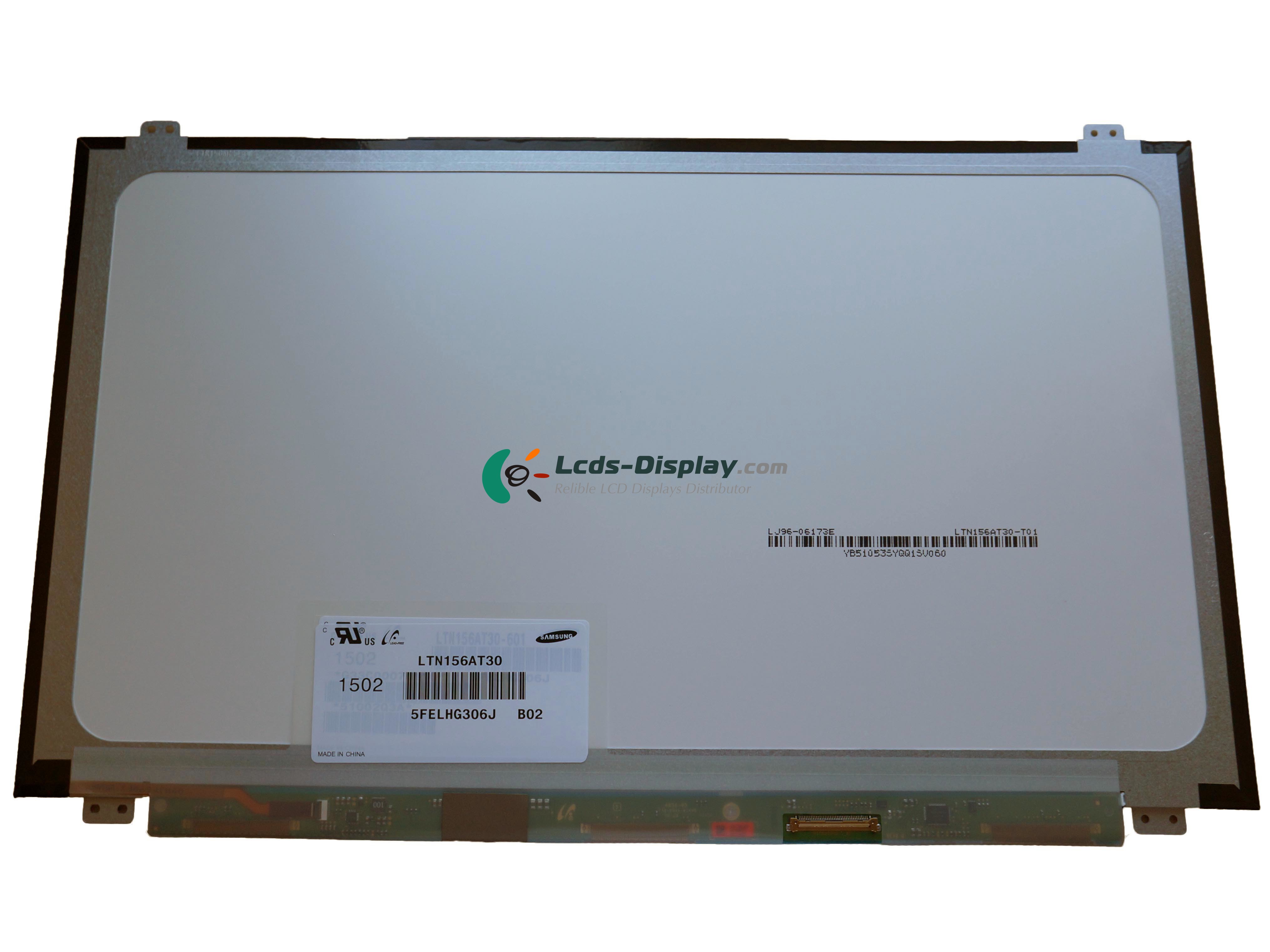

LTN156AT30-B02
LTN156AT30-B02 Basis informatie
| panel Model | LTN156AT30-B02 |
|---|---|
| panel Brand | SAMSUNG |
| descrition | a-Si TFT-LCD ,15.6 inch, 1366×768 |
| panel Type | a-Si TFT-LCD |
| LTN156AT30-B02 Prijs | Aanvraag Prijs & Lead Time |
| Bedrijfstemperatuur | 0 ~ 50 °C |
| Bewaar temperatuur | -20 ~ 60 °C |
LTN156AT30-B02 mechanische Kenmerken
| Dot resolutie | 1366(RGB)×768 (WXGA) |
|---|---|
| Pixelconfiguratie | RGB Vertical Stripe |
| Pixel dichtheid | 100 PPI |
| Beeldverhouding | 16:9 (H:V) |
| Vormfactor | Flat Rectangle Display |
| Dot Pitch | 0.084×0.252 mm (H×V) |
| Pixel pitch | 0.252×0.252 mm (H×V) |
| Actief gebied | 344.232×193.536 mm (H×V) |
| Landschap of portret | Landscape type |
| Aanraakpaneel | Without |
LTN156AT30-B02 optisch Kenmerken
| Weergavemodus | TN, Normally White, Transmissive |
|---|---|
| Kleur weergeven | 262K (6-bit) |
| Richting bekijken | 6 o'clock |
| Zonlicht leesbaar | N |
LTN156AT30-B02 Electronics Feature
| Verticale frequentie | 60Hz |
|---|---|
| Reverse Scan | No |
LTN156AT30-B02 backlight System
| Lamp positie | Edge light type |
|---|---|
| Lamp type | WLED |
| Interface Type | Included in panel signal interface |
