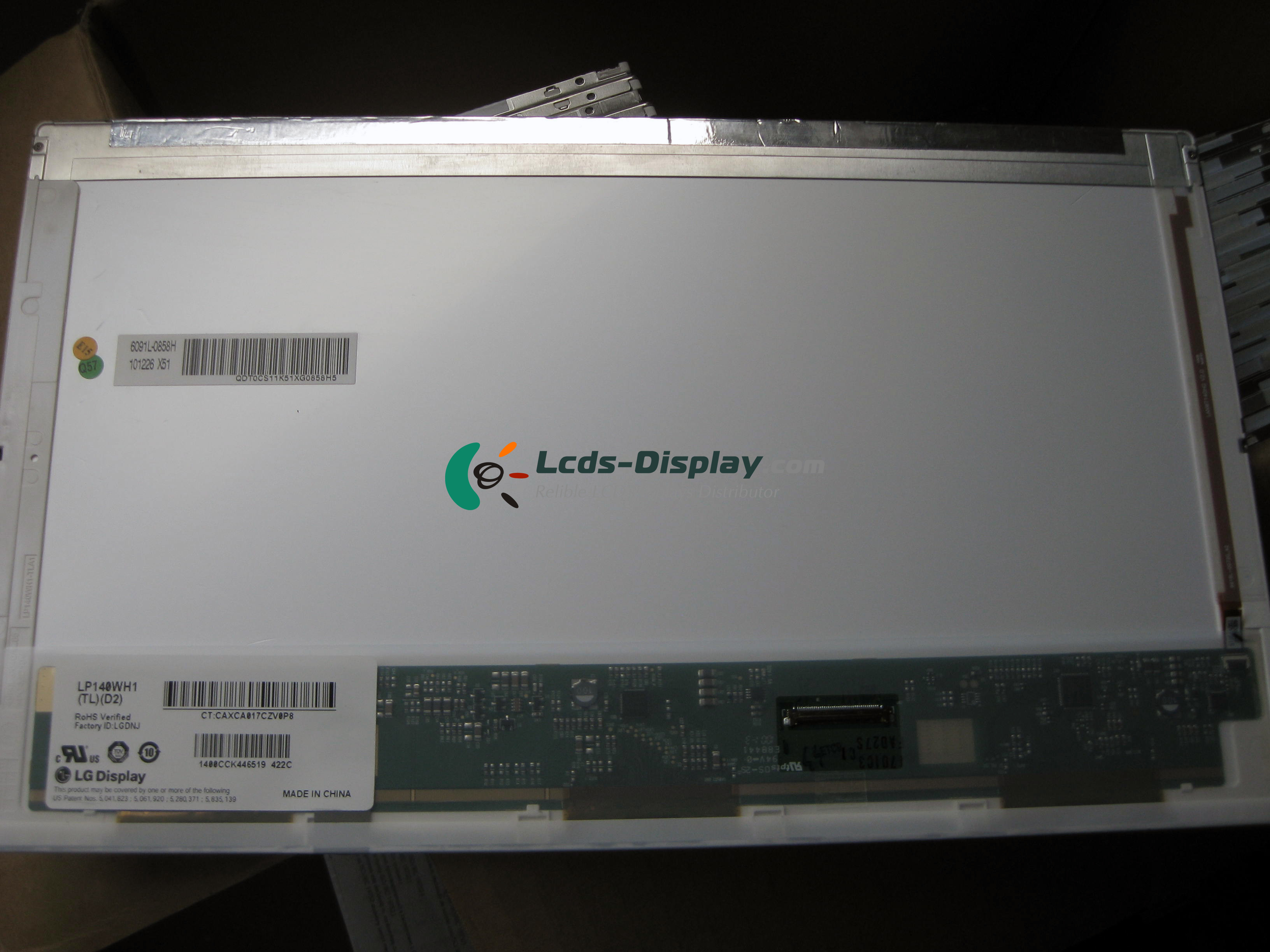

LP140WH1-TLD2
LP140WH1-TLD2 Basis informatie
| panel Model | LP140WH1-TLD2 |
|---|---|
| panel Brand | LG Display |
| descrition | a-Si TFT-LCD ,14.0 inch, 1366×768 |
| panel Type | a-Si TFT-LCD |
| LP140WH1-TLD2 Prijs | Aanvraag Prijs & Lead Time |
| Modelalias | LP140WH1 (TL)(D2) |
| Bedrijfstemperatuur | 0 ~ 50 °C |
| Bewaar temperatuur | -20 ~ 60 °C |
LP140WH1-TLD2 mechanische Kenmerken
| Dot resolutie | 1366(RGB)×768 (WXGA) |
|---|---|
| Pixelconfiguratie | RGB Vertical Stripe |
| Pixel dichtheid | 112 PPI |
| Beeldverhouding | 16:9 (H:V) |
| Vormfactor | Flat Rectangle Display |
| Dot Pitch | 0.0755×0.2265 mm (H×V) |
| Pixel pitch | 0.2265×0.2265 mm (H×V) |
| Actief gebied | 309.399×173.952 mm (H×V) |
| Vormstijl | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Landschap of portret | Landscape type |
LP140WH1-TLD2 optisch Kenmerken
| Weergavemodus | TN, Normally White, Transmissive |
|---|---|
| Kleur weergeven | 262K (6-bit) |
| Kleurengamma | 60% NTSC (CIE1931) |
| Zonlicht leesbaar | N |
LP140WH1-TLD2 Electronics Feature
| Verticale frequentie | 60Hz |
|---|
LP140WH1-TLD2 backlight System
| Lamp positie | Edge light type |
|---|---|
| Lamp type | WLED |
LP140WH1-TLD2 Signal Interface
| Signaalcategorie | LVDS |
|---|---|
| Signaalklasse | LVDS (1 ch, 6-bit) |
