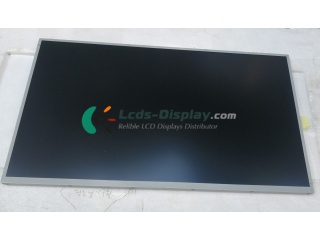

LM238WR2-SPD1
LM238WR2-SPD1 Basis informatie
panel Model | LM238WR2-SPD1 |
---|---|
panel Brand | LG Display |
descrition | a-Si TFT-LCD ,23.8 inch, 3840×2160 |
panel Type | a-Si TFT-LCD |
LM238WR2-SPD1 Prijs | Aanvraag Prijs & Lead Time |
Alias | LM238WR2 (SP)(D1) |
Opslagtemp. | -20 ~ 60 °C |
Bedrijfstemperatuur. | 0 ~ 50 °C |
vibratie | - |
LM238WR2-SPD1 mechanische Kenmerken
Alias | LM238WR2 (SP)(D1) |
---|---|
Opslagtemp. | -20 ~ 60 °C |
Bedrijfstemperatuur. | 0 ~ 50 °C |
vibratie | - |
Resolutie | 3840(RGB)×2160, UHD |
Puntsteek (mm) | 0.04575×0.13725 (H×V) |
Pixelformaat | RGB Vertical Stripe |
Pixelsteek (mm) | 0.13725×0.13725 (H×V) |
Actief gebied (mm) | 527.04(H) × 296.46(V) |
Bezel gebied (mm) | 530.2(H) × 299.6(V) |
Outline Dim. (Mm) | 545(H) × 317.4(V) |
Diepte (mm) | 8.4/12.7 (Typ./Max.) |
Formulierstijl | Flat Rectangle |
Vormstijl | - |
Beeldverhouding | 16:9 (H:V) |
oriëntering | Landscape type |
Montage | Rear mounting Pole (6-M3) |
Gewicht | 1.73/1.82Kgs (Typ./Max.) |
Behandeling | Antiglare, Hard coating (3H) |
LM238WR2-SPD1 optisch Kenmerken
Alias | LM238WR2 (SP)(D1) |
---|---|
Opslagtemp. | -20 ~ 60 °C |
Bedrijfstemperatuur. | 0 ~ 50 °C |
vibratie | - |
Resolutie | 3840(RGB)×2160, UHD |
Puntsteek (mm) | 0.04575×0.13725 (H×V) |
Pixelformaat | RGB Vertical Stripe |
Pixelsteek (mm) | 0.13725×0.13725 (H×V) |
Actief gebied (mm) | 527.04(H) × 296.46(V) |
Bezel gebied (mm) | 530.2(H) × 299.6(V) |
Outline Dim. (Mm) | 545(H) × 317.4(V) |
Diepte (mm) | 8.4/12.7 (Typ./Max.) |
Formulierstijl | Flat Rectangle |
Vormstijl | - |
Beeldverhouding | 16:9 (H:V) |
oriëntering | Landscape type |
Montage | Rear mounting Pole (6-M3) |
Gewicht | 1.73/1.82Kgs (Typ./Max.) |
Behandeling | Antiglare, Hard coating (3H) |
Luminantie (cd / m²) | 250(Typ.) |
contrast ratio | 1000:1 (Typ.) (Transmissive) |
Kijk hoek | 89/89/89/89 (Typ.)(CR≥10) |
Weergavemodus | IPS, Normally Black, Transmissive |
Beste zicht op | Symmetry |
Respons (ms) | 14 (Typ.)(G to G) |
Witte coördinaat | Wx:0.313; Wy:0.329 |
Kleuren weergeven | 1.07B (8-bit + Hi-FRC) |
Kleurengamma | sRGB |
Witte uniformiteit | 1.33 (Max.)(9 points) |
LM238WR2-SPD1 Electronics Feature
Alias | LM238WR2 (SP)(D1) |
---|---|
Opslagtemp. | -20 ~ 60 °C |
Bedrijfstemperatuur. | 0 ~ 50 °C |
vibratie | - |
Resolutie | 3840(RGB)×2160, UHD |
Puntsteek (mm) | 0.04575×0.13725 (H×V) |
Pixelformaat | RGB Vertical Stripe |
Pixelsteek (mm) | 0.13725×0.13725 (H×V) |
Actief gebied (mm) | 527.04(H) × 296.46(V) |
Bezel gebied (mm) | 530.2(H) × 299.6(V) |
Outline Dim. (Mm) | 545(H) × 317.4(V) |
Diepte (mm) | 8.4/12.7 (Typ./Max.) |
Formulierstijl | Flat Rectangle |
Vormstijl | - |
Beeldverhouding | 16:9 (H:V) |
oriëntering | Landscape type |
Montage | Rear mounting Pole (6-M3) |
Gewicht | 1.73/1.82Kgs (Typ./Max.) |
Behandeling | Antiglare, Hard coating (3H) |
Luminantie (cd / m²) | 250(Typ.) |
contrast ratio | 1000:1 (Typ.) (Transmissive) |
Kijk hoek | 89/89/89/89 (Typ.)(CR≥10) |
Weergavemodus | IPS, Normally Black, Transmissive |
Beste zicht op | Symmetry |
Respons (ms) | 14 (Typ.)(G to G) |
Witte coördinaat | Wx:0.313; Wy:0.329 |
Kleuren weergeven | 1.07B (8-bit + Hi-FRC) |
Kleurengamma | sRGB |
Witte uniformiteit | 1.33 (Max.)(9 points) |
Frame rate | 60Hz |
Reverse Scan | No |
Totaal verbruik | 20.6W (Typ.) |
LM238WR2-SPD1 Signal Interface
Alias | LM238WR2 (SP)(D1) |
---|---|
Opslagtemp. | -20 ~ 60 °C |
Bedrijfstemperatuur. | 0 ~ 50 °C |
vibratie | - |
Resolutie | 3840(RGB)×2160, UHD |
Puntsteek (mm) | 0.04575×0.13725 (H×V) |
Pixelformaat | RGB Vertical Stripe |
Pixelsteek (mm) | 0.13725×0.13725 (H×V) |
Actief gebied (mm) | 527.04(H) × 296.46(V) |
Bezel gebied (mm) | 530.2(H) × 299.6(V) |
Outline Dim. (Mm) | 545(H) × 317.4(V) |
Diepte (mm) | 8.4/12.7 (Typ./Max.) |
Formulierstijl | Flat Rectangle |
Vormstijl | - |
Beeldverhouding | 16:9 (H:V) |
oriëntering | Landscape type |
Montage | Rear mounting Pole (6-M3) |
Gewicht | 1.73/1.82Kgs (Typ./Max.) |
Behandeling | Antiglare, Hard coating (3H) |
Luminantie (cd / m²) | 250(Typ.) |
contrast ratio | 1000:1 (Typ.) (Transmissive) |
Kijk hoek | 89/89/89/89 (Typ.)(CR≥10) |
Weergavemodus | IPS, Normally Black, Transmissive |
Beste zicht op | Symmetry |
Respons (ms) | 14 (Typ.)(G to G) |
Witte coördinaat | Wx:0.313; Wy:0.329 |
Kleuren weergeven | 1.07B (8-bit + Hi-FRC) |
Kleurengamma | sRGB |
Witte uniformiteit | 1.33 (Max.)(9 points) |
Frame rate | 60Hz |
Reverse Scan | No |
Totaal verbruik | 20.6W (Typ.) |
Voltage | 10.0V (Typ.) |
Huidige voorraad | 630/788mA (Typ./Max.) |
Consumptie | 6.3/7.88W (Typ./Max.) |
Signaal type | eDP (4 Lanes) |
Logische spanning | - |
Positie | |
toonhoogte | Pins |
Aantal stuks | Pin Configuration |
LM238WR2-SPD1 backlight System
Alias | LM238WR2 (SP)(D1) |
---|---|
Opslagtemp. | -20 ~ 60 °C |
Bedrijfstemperatuur. | 0 ~ 50 °C |
vibratie | - |
Resolutie | 3840(RGB)×2160, UHD |
Puntsteek (mm) | 0.04575×0.13725 (H×V) |
Pixelformaat | RGB Vertical Stripe |
Pixelsteek (mm) | 0.13725×0.13725 (H×V) |
Actief gebied (mm) | 527.04(H) × 296.46(V) |
Bezel gebied (mm) | 530.2(H) × 299.6(V) |
Outline Dim. (Mm) | 545(H) × 317.4(V) |
Diepte (mm) | 8.4/12.7 (Typ./Max.) |
Formulierstijl | Flat Rectangle |
Vormstijl | - |
Beeldverhouding | 16:9 (H:V) |
oriëntering | Landscape type |
Montage | Rear mounting Pole (6-M3) |
Gewicht | 1.73/1.82Kgs (Typ./Max.) |
Behandeling | Antiglare, Hard coating (3H) |
Luminantie (cd / m²) | 250(Typ.) |
contrast ratio | 1000:1 (Typ.) (Transmissive) |
Kijk hoek | 89/89/89/89 (Typ.)(CR≥10) |
Weergavemodus | IPS, Normally Black, Transmissive |
Beste zicht op | Symmetry |
Respons (ms) | 14 (Typ.)(G to G) |
Witte coördinaat | Wx:0.313; Wy:0.329 |
Kleuren weergeven | 1.07B (8-bit + Hi-FRC) |
Kleurengamma | sRGB |
Witte uniformiteit | 1.33 (Max.)(9 points) |
Frame rate | 60Hz |
Reverse Scan | No |
Totaal verbruik | 20.6W (Typ.) |
Voltage | 47.7±3.2V |
Huidige voorraad | 75/80mA (Typ./Max.) |
Consumptie | 14.3/15.3W (Typ./Max.) |
Signaal type | eDP (4 Lanes) |
Logische spanning | - |
Positie | |
toonhoogte | Pins |
Aantal stuks | Pin Configuration H:Higt VoltageN:No connectionL:Low VoltageA:AnodeC:Cathode" /> |
Vervanging | - |
Vorm | 4 strings |
Levenslang | 30K(Min.) Hours |
Backlight stuurprogramma | No |
