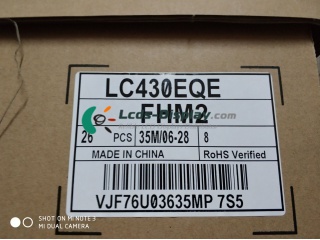

LC430EQE-FHM2
LC430EQE-FHM2 Basis informatie
| panel Model | LC430EQE-FHM2 |
|---|---|
| panel Brand | LG Display |
| descrition | a-Si TFT-LCD ,43 inch, 3840×2160 |
| panel Type | a-Si TFT-LCD |
| LC430EQE-FHM2 Prijs | Aanvraag Prijs & Lead Time |
| Modelalias | LC430EQE (FH)(M2) |
| Bedrijfstemperatuur. | 0 ~ 50 °C |
| Opslagtemp. | -20 ~ 60 °C |
| Vibration Rating | - |
LC430EQE-FHM2 mechanische Kenmerken
| Modelalias | LC430EQE (FH)(M2) |
|---|---|
| Bedrijfstemperatuur. | 0 ~ 50 °C |
| Opslagtemp. | -20 ~ 60 °C |
| Vibration Rating | - |
| Pixelformaat | 3840(RGB)×2160, UHD |
| Dot Pitch | 0.0817×0.2451 mm (H×V) |
| Configuratie | RGB Vertical Stripe |
| Pixel pitch | 0.2451×0.2451 mm (H×V) |
| Weergavegebied | 941.184×529.416 mm (H×V) |
| Bezel gebied | 945.8×534.0 mm (H×V) |
| Overzicht Dim. | 964.6×555.4 mm (H×V) |
| Outline Depth | 22.6/29.1 (Typ./Max.) mm |
| Vormfactor | Flat Rectangle |
| oriëntering | Landscape type |
| Beeldverhouding | 16:9 (H:V) |
| Vormstijl | - |
LC430EQE-FHM2 optisch Kenmerken
| Modelalias | LC430EQE (FH)(M2) |
|---|---|
| Bedrijfstemperatuur. | 0 ~ 50 °C |
| Opslagtemp. | -20 ~ 60 °C |
| Vibration Rating | - |
| Pixelformaat | 3840(RGB)×2160, UHD |
| Dot Pitch | 0.0817×0.2451 mm (H×V) |
| Configuratie | RGB Vertical Stripe |
| Pixel pitch | 0.2451×0.2451 mm (H×V) |
| Weergavegebied | 941.184×529.416 mm (H×V) |
| Bezel gebied | 945.8×534.0 mm (H×V) |
| Overzicht Dim. | 964.6×555.4 mm (H×V) |
| Outline Depth | 22.6/29.1 (Typ./Max.) mm |
| Vormfactor | Flat Rectangle |
| oriëntering | Landscape type |
| Beeldverhouding | 16:9 (H:V) |
| Vormstijl | - |
| Helderheid | - |
| contrast ratio | 1200:1 (Typ.) (Transmissive) |
| Kijk hoek | 89/89/89/89 (Min.)(CR≥10) |
| Optische modus | IPS, Normally Black, Transmissive |
| Richting bekijken | Symmetry |
| Reactietijd | 8 (Typ.)(G to G) ms |
| chromaticity | Wx:0.281; Wy:0.288 |
| Kleurnummers | 16.7M (8-bit) |
| Kleurengamma | 72% NTSC (CIE1931) |
| Uniformiteit | 1.43 (Max.)(9 points) |
LC430EQE-FHM2 backlight System
| Modelalias | LC430EQE (FH)(M2) |
|---|---|
| Bedrijfstemperatuur. | 0 ~ 50 °C |
| Opslagtemp. | -20 ~ 60 °C |
| Vibration Rating | - |
| Pixelformaat | 3840(RGB)×2160, UHD |
| Dot Pitch | 0.0817×0.2451 mm (H×V) |
| Configuratie | RGB Vertical Stripe |
| Pixel pitch | 0.2451×0.2451 mm (H×V) |
| Weergavegebied | 941.184×529.416 mm (H×V) |
| Bezel gebied | 945.8×534.0 mm (H×V) |
| Overzicht Dim. | 964.6×555.4 mm (H×V) |
| Outline Depth | 22.6/29.1 (Typ./Max.) mm |
| Vormfactor | Flat Rectangle |
| oriëntering | Landscape type |
| Beeldverhouding | 16:9 (H:V) |
| Vormstijl | - |
| Helderheid | - |
| contrast ratio | 1200:1 (Typ.) (Transmissive) |
| Kijk hoek | 89/89/89/89 (Min.)(CR≥10) |
| Optische modus | IPS, Normally Black, Transmissive |
| Richting bekijken | Symmetry |
| Reactietijd | 8 (Typ.)(G to G) ms |
| chromaticity | Wx:0.281; Wy:0.288 |
| Kleurnummers | 16.7M (8-bit) |
| Kleurengamma | 72% NTSC (CIE1931) |
| Uniformiteit | 1.43 (Max.)(9 points) |
| Lamp type | WLED |
| Bedrag | - |
| Levenslang | 30K(Min.) (Hours) |
| Vervanging | - |
| Lamp vorm | - |
| Positie | Edge light type |
LC430EQE-FHM2 Signal Interface
| Modelalias | LC430EQE (FH)(M2) |
|---|---|
| Bedrijfstemperatuur. | 0 ~ 50 °C |
| Opslagtemp. | -20 ~ 60 °C |
| Vibration Rating | - |
| Pixelformaat | 3840(RGB)×2160, UHD |
| Dot Pitch | 0.0817×0.2451 mm (H×V) |
| Configuratie | RGB Vertical Stripe |
| Pixel pitch | 0.2451×0.2451 mm (H×V) |
| Weergavegebied | 941.184×529.416 mm (H×V) |
| Bezel gebied | 945.8×534.0 mm (H×V) |
| Overzicht Dim. | 964.6×555.4 mm (H×V) |
| Outline Depth | 22.6/29.1 (Typ./Max.) mm |
| Vormfactor | Flat Rectangle |
| oriëntering | Landscape type |
| Beeldverhouding | 16:9 (H:V) |
| Vormstijl | - |
| Helderheid | - |
| contrast ratio | 1200:1 (Typ.) (Transmissive) |
| Kijk hoek | 89/89/89/89 (Min.)(CR≥10) |
| Optische modus | IPS, Normally Black, Transmissive |
| Richting bekijken | Symmetry |
| Reactietijd | 8 (Typ.)(G to G) ms |
| chromaticity | Wx:0.281; Wy:0.288 |
| Kleurnummers | 16.7M (8-bit) |
| Kleurengamma | 72% NTSC (CIE1931) |
| Uniformiteit | 1.43 (Max.)(9 points) |
| Lamp type | WLED |
| Bedrag | Configuration |
| Levenslang | 30K(Min.) (Hours) |
| Vervanging | - |
| Lamp vorm | - |
| Positie | - |
| Logische spanning | - |
| Voltage Input | 12.0V (Typ.) |
| Huidige invoer | 510/663mA (Typ./Max.) |
| Consumptie | 6.12/7.95W (Typ./Max.) |
| Pin Pitch | Pins |
